Single or dual cable design
Up to 120kW, 160kW or 240kW power configurations
Seamless data connection via Ethernet, Wi-Fi or 4G
ISO 15118 hardware ready
15” HD Touchscreen interface for easy user interaction
Durable and accessible design for easy maintenance
CCS1 and NACS cables available
Commercial

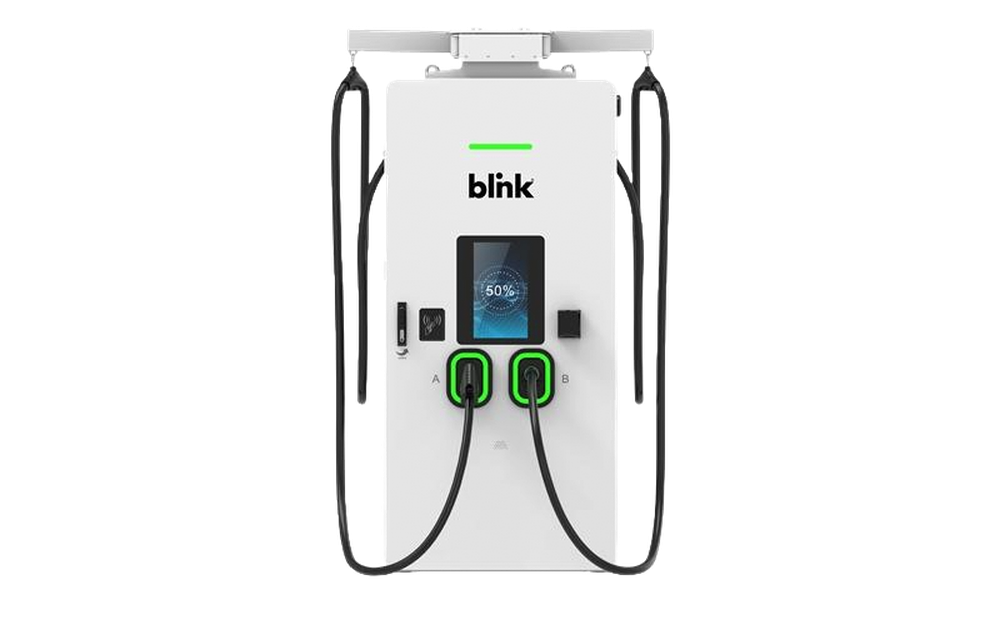

Blink High Power All-In-One DCFC 120-240kW
DC
The 120-240kW All-In-One DC Charging Stations, powered by Blink, are a high-performance EV charging solution that can distribute power flexibly to two connectors simultaneously. They feature an ultra-wide output voltage range (200–1000V), a large touch screen, and cable management, making it a great solution for high traffic, commercial locations.
CCS1
NACS
Models
| Electrical | 120kW | 160kW | 240kW |
|---|---|---|---|
| Input Voltage | 480VAC +/- 10% | 480VAC +/- 10% | 480VAC +/- 10% |
| Input Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Input Type | L1+L2+L3+PE | L1+L2+L3+PE | 3P + PE |
| Input AC Current (FLA) | 150A | 200A | 300A |
| Input Power | 128kW | 170kW | 258kW |
| Connector Options | CCS1; NACS | CCS1; NACS | CCS1; NACS |
| Output Voltage | 200-1000V | 200-1000V | 50-1000 Vdc 300~1000V is the output voltage of constant power output. |
| Maximum Output Current | CCS1 up to 120kW NACS up to 120kW | CCS1 up to 350A (500A Boost) NACS up to 350A (400A Boost) | CCS1: 200A, 300A Optional NACS: 200A, 300A Optional |
| Rated Power | 160kW | 160kW | 240kW |
| Peak Efficiency | ≥96% | ≥96% | 96% |
Product Documentation
Convenient and Versatile DCFC
Durable
Manufactured with galvanised steel, the 120-240kW All-In-One chargers are built to be durable and robust.
Accessible
Accessible design makes the 120-240kW All-In-One chargers great for quick and easy maintenance.
Versatile
With various power configurations available to fit multiple applications, the 120-240kW All-In-One chargers are great for high traffic locations.

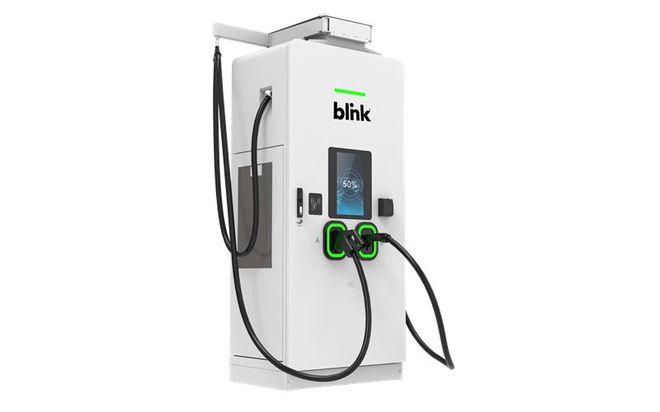

Blink High Power All-In-One DCFC 120-240kW
Powerful DC Fast Charging
The Blink High Power All-In-One DCFC 120-240kW chargers, powered by Blink are a high-performance, future-ready EV charging solution delivering up to 240 kW power with an ultra-wide voltage range of 200–1000V, ensuring compatibility with numerous current and upcoming EVs. The 120-240kW All-In-One chargers are intelligent, allowing for simultaneous charging for two vehicles, optimizing power distribution to reduce wait times and maximize efficiency. Designed for convenience, they feature a large touch screen interface and integrated cable management for a clean, user-friendly experience. With OCPP 1.6J, and multiple data connectivity options, including Wi-Fi, Ethernet and 4G, they integrate seamlessly with backend systems and payment solutions. The 120-240kW All-In-One chargers are also designed for quick and easy maintenance and are applicable for diverse deployment scenarios.
